The new SET cRIO ARINC series offers a wide range of modules for numerous areas of application.

Overview
ARINC 429

ARINC 429 Module

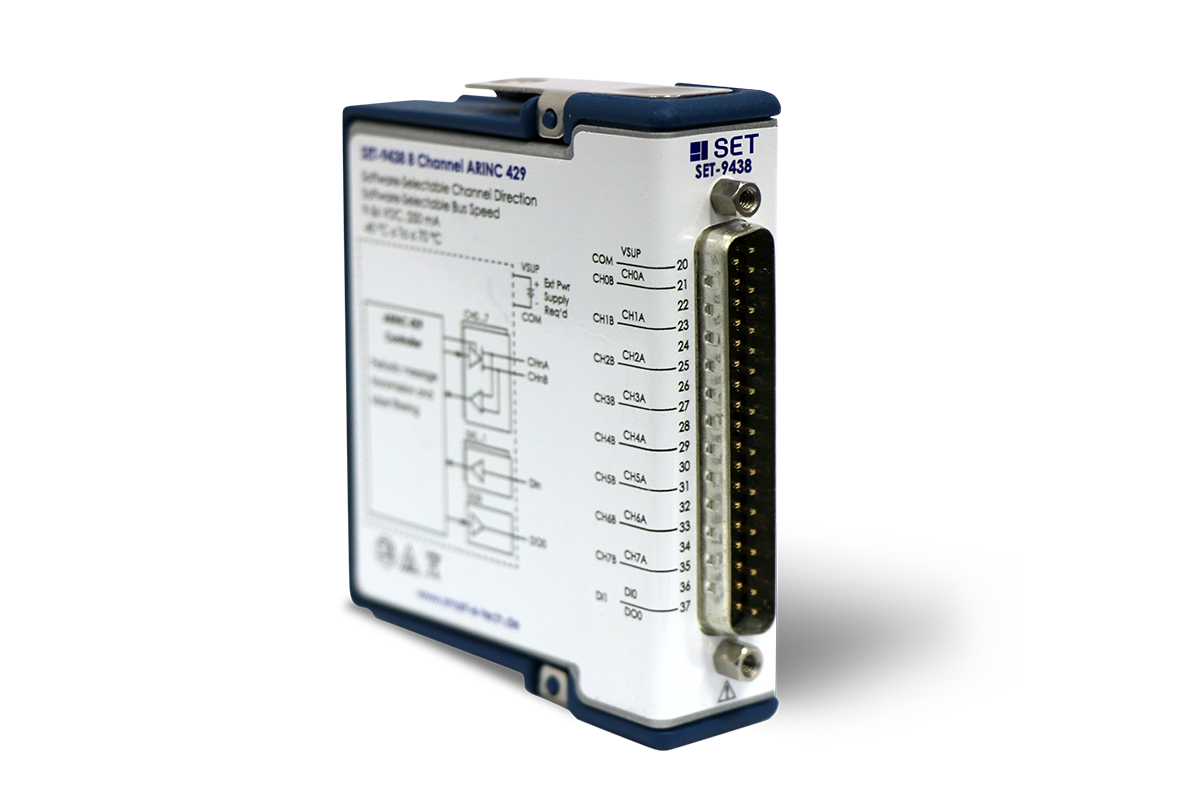

The new SET cRIO ARINC series offers a wide range of modules for numerous areas of application. The modules are available in various TX/RX channel configurations. Thanks to the included LabVIEW FPGA API, the cRIO modules can be integrated seamlessly into existing projects.

Special Module Features:

  • Individual transfer rate switchover for each TX channel
  • Automatic transfer rate recognition on RX channels
  • Hardware-based cyclical communication
  • Message reception and itemization by label in hardware
  • Additional direct access to the transmitter and receiver unit
  • SET-943x: Maximum flexibility thanks to switchable channel directions in the software
  • SET-946x: Maximum specified signal density

Modulvarianten:

  • SET-9434: 4CH software selectable direction
  • SET-9438: 8CH software selectable direction
  • SET-9464: 4TX 4RX
  • SET-9468: 8TX 8RX

Request Article

ARINC 429

Technical Data

Channels up to 8 in each direction, software selectable (depending on module), short-circuit tolerant channels
Data rates12.5 kb/s and 100 kb/s software selectable bus speed
Operating temperature range -40 C … +70° C
Power consumption250 mA max
Power supply9 … 36 V

Datasheet cRIO ARINC 429 Download Documenation

Our modules are compatible with LabVIEW 2020 and support the new NI cRIO 904x chassis series.

Download LabVIEW drivers:
