SET-1240

xVDT Emulator Card

8 independent, galvanically isolated channels for xVDT Emulation

Overview

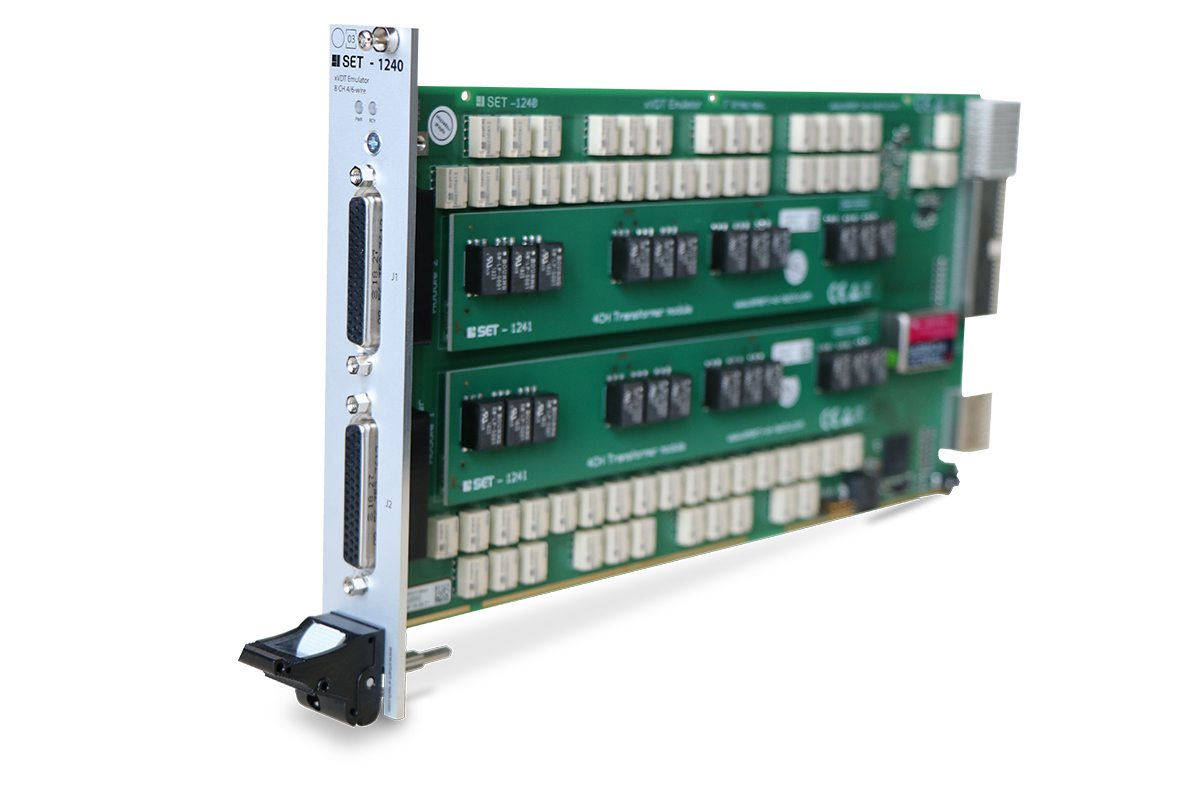

SET-1240 xVDT card

SET 1240 – xVDT Emulator Card

The SET-1240 xVDT card can emulate 4/5/6-wire LVDTs, RVDTs and resolvers.
The card offers 8 independent, galvanically isolated channels. In addition to a wide excitation frequency range from 400Hz to 10kHz, the card also offers various self-test options. The transformers are located on an exchangeable sub-card and can therefore be easily exchanged or specified on request.

Request Article

SET-1240

National Instruments Part Number:
787756-01

Request

  • HiL Test Systems
  • Automotive
  • Aerospace

Absolute Maximum Ratings

ConditionValue
Max. Excitation Voltage Recommended Operation Range400Hz ≤ fExc ≤ 1kHz: 3 VRMS
1kHz < fExc ≤ 10kHz: 7 VRMS
Operation without damage 10 VRMS
Max. Common mode Excitation Voltage45 VDC
Min. Common mode Excitation Voltage-45 VDC
Max. RTI CNTL Voltage +10 V
Min. RTI CNTL Voltage -10 V
Excitation Frequency Recommended Operation Range400 Hz – 10 kHz

Technical Data

ConditionValueComment
Update TimeSLSC Commit CMD duration
Expected Electrical Relay Lifetime1 A, 30 VDC resistive105 operations
DC Resistance of Transformers115 Ω ± 15%

Physicals Characteristics

ConditionValueComment
Module DimensionsExcluding ejector144.32mm x 30.48mm x 302mm (H x W x D)Standard SLSC card size
Front Panel Connector2x female DB -44 high-density D-Sub with 4-40 UNC screw lockFor mating connectors and cables, contact us
RTI Connector2mm hard metric per IEC 61076-101Any RTI marked

Environmental

ConditionValue
Operating HumidityRelative, non-condensing10% – 90%
Storage HumidityRelative, non-condensing5% – 95%
Operating TemperatureForced-air cooling from chassis0 °C – 40 °C
Storage Temperature-40 °C – 85 °C
Maximum Altitude2000 m

SET-1240 Technical Description Download Documenation
