Power Cycling test systems & IOL
Efficient testers with modular system for fast scalability
High measurement quality at high throughput. Permanently increase the effectiveness of your reliability tests with a power cycler or IOL test system.
Low Total Cost of Test (TCOT)
with high quality and high throughput
SET’s power cyclers and load cycling test systems, or IOL (Intermittent Operating Life) test systems, efficiently test power semiconductors. When testing with a power cycler, the DUTs are switched on and off continuously, thus thermally stressing the DUTs. Power cycling test systems increase measurement quality and throughput and reduce testing costs on an open platform. The focus is on seamless monitoring and precise determination of all parameters of each DUT.
In addition, the systems are equipped for the special requirements of wide bandgap technology and are compatible for a measurement with the materials SiC and GaN.
Test System Requests
Power Cyling Tester & IOL
We are happy to advise you!
System Features
- Fully automated test process including characterization
- High throughput due to active cooling
- Full recording of all single pulses of each DUT

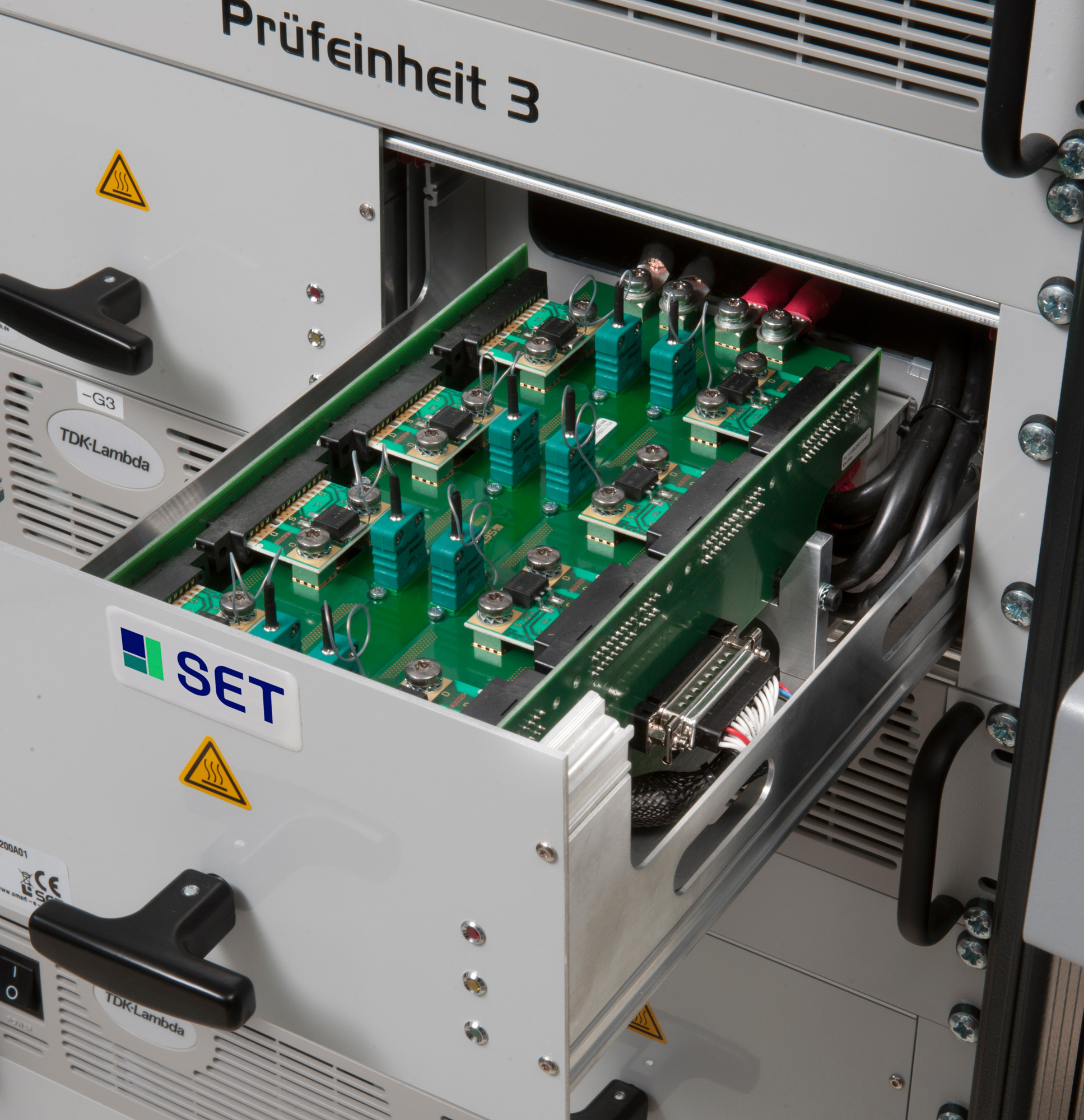

- Various drawers available for standard housings
- Custom adaptation for available substrates
- High-precision timing through FPGA technology
- Compatible with new wide bandgap technology (SiC / GaN)
Technical Data

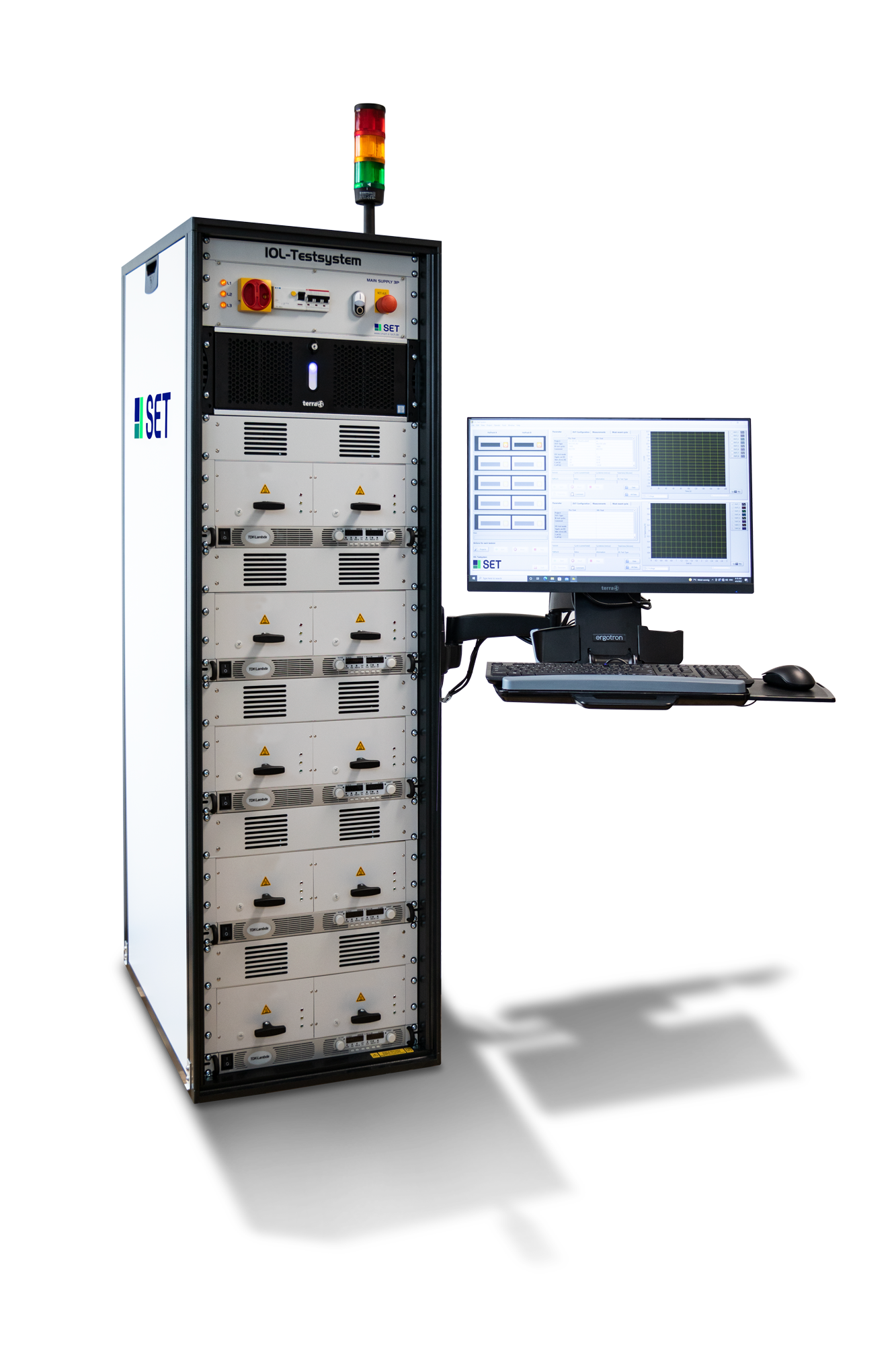

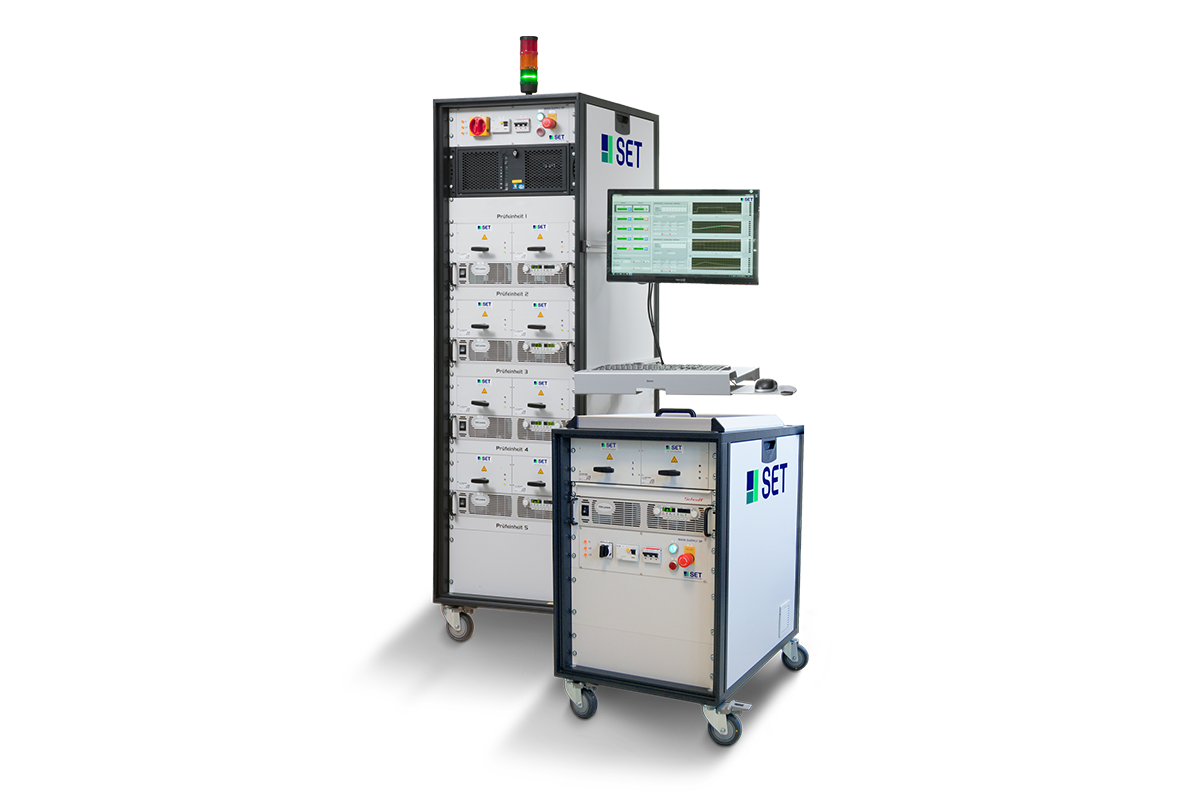

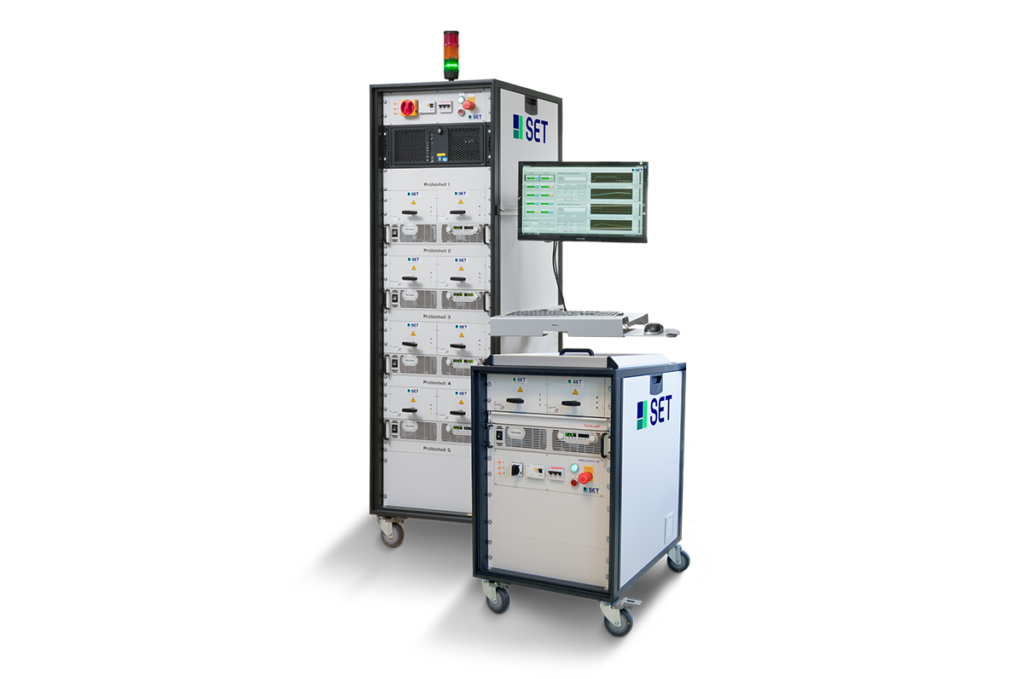

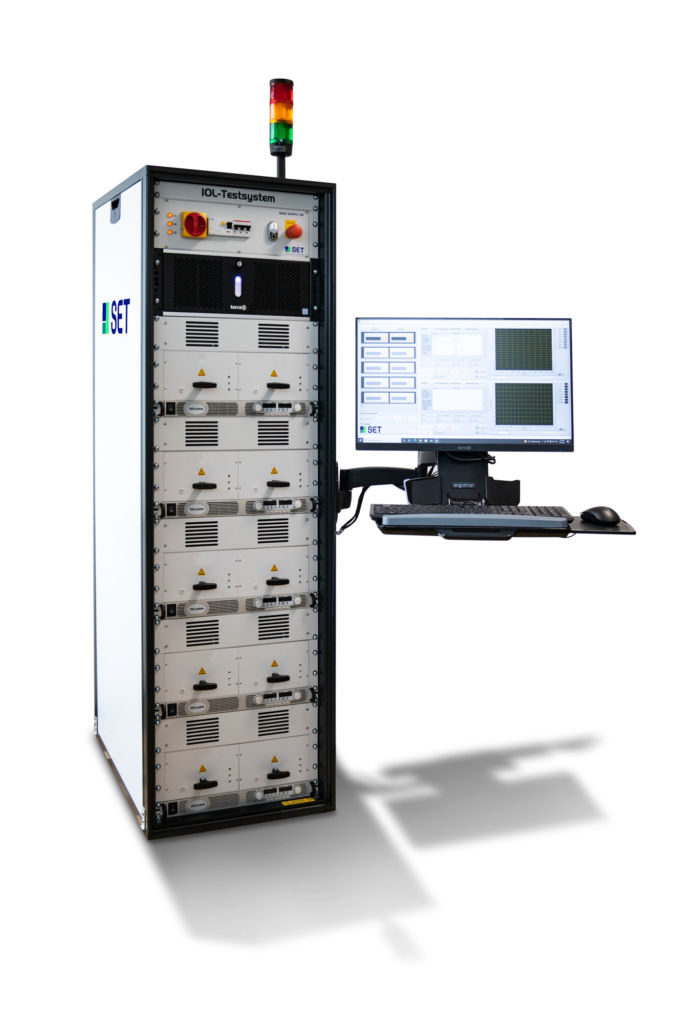

| IOL 80 | IOL Bench Top | Power Cycling | |
| Devices under test (DUTs) per system (fully monitored) | 80 max | 16 max | 3×3 max |
| Load current | 0-250A | 0-250A | 0-2000A |
| Measurement current | -50 – +50mA | -50 – +50mA | -50 – +50mA |
| Active cooling | |||
| Cooling medium | Air / Pressured Air | Air / Gas | Liquid conditioning -40°C – +150°C |
| Monitoring parameter Tc ILoad ULoad UReverse (UF) Rth Tvj | |||
| FPGA-Technology for precise timing and measurement | |||
| RT based measurement engine | |||

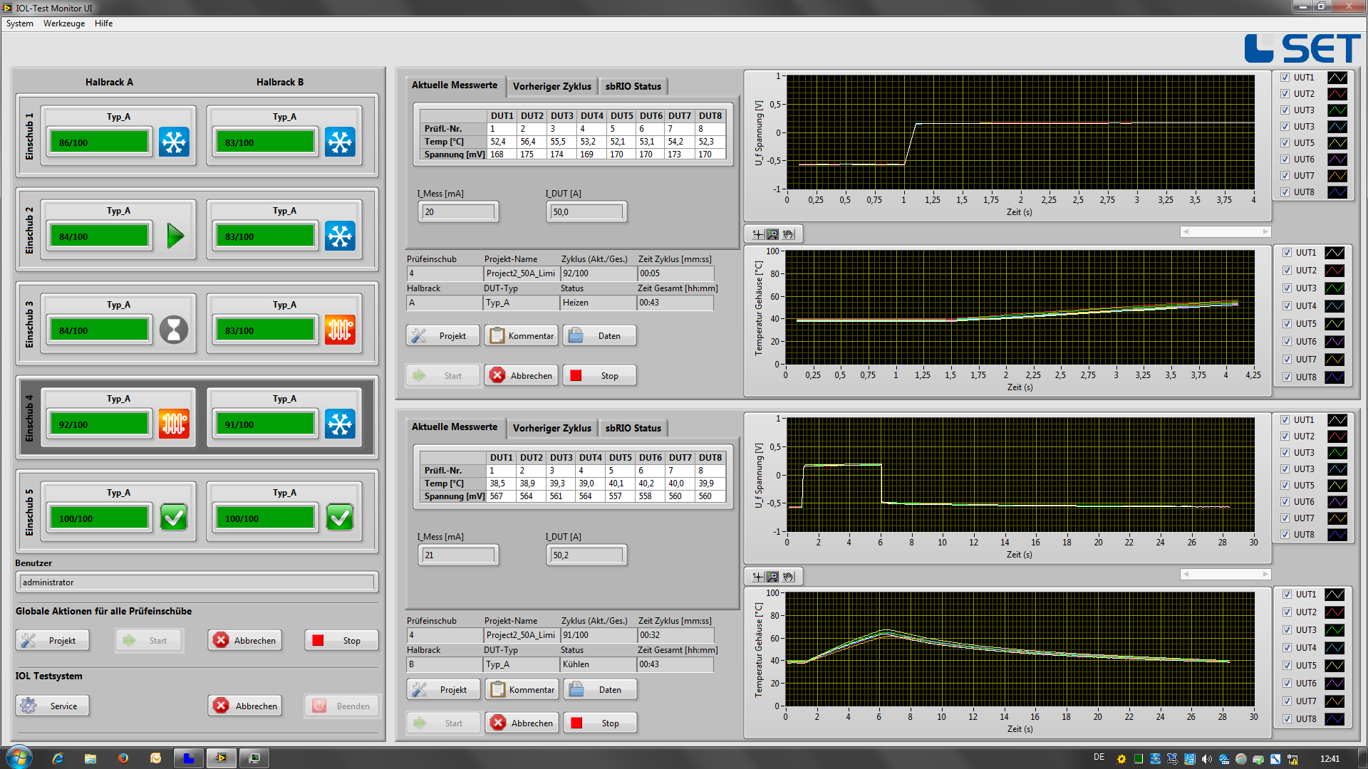

| Online visualisation | |||

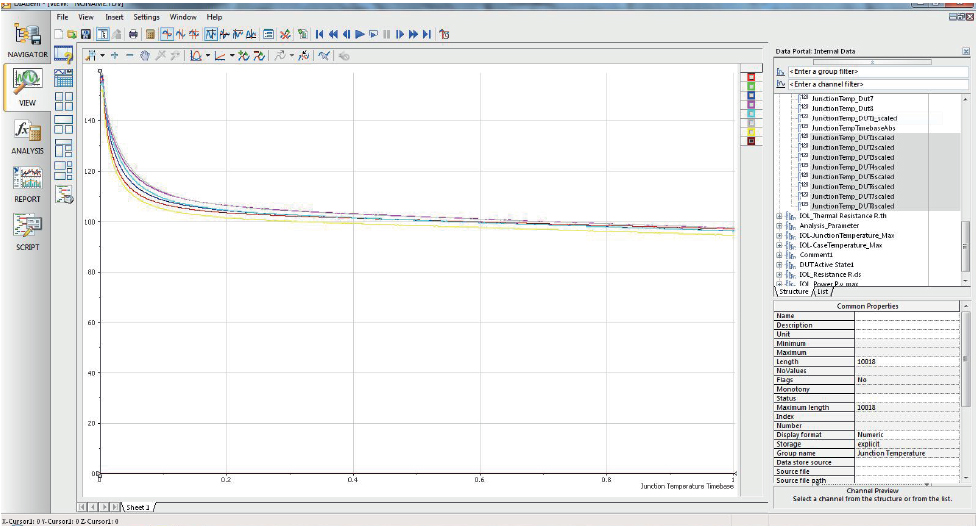

| DIAdem data connector for offline analysis | |||
| Modularity | 1-5 Modules | 1 Module | 1-2 Modules |
REQUEST
Do you have questions about the power cycling or IOL test system or would you like an offer?
Our support team is always available to answer your questions and will be happy to provide you with a customized offer according to your requirements.
You would like to have your DUTs tested at our premises for the time being? With our in-house service “Testing as a Service” we offer you simple and fast testing directly at the expert’s site.
