H(3)TRB & HTGB / HTGS test systems

High performance & High volume tests

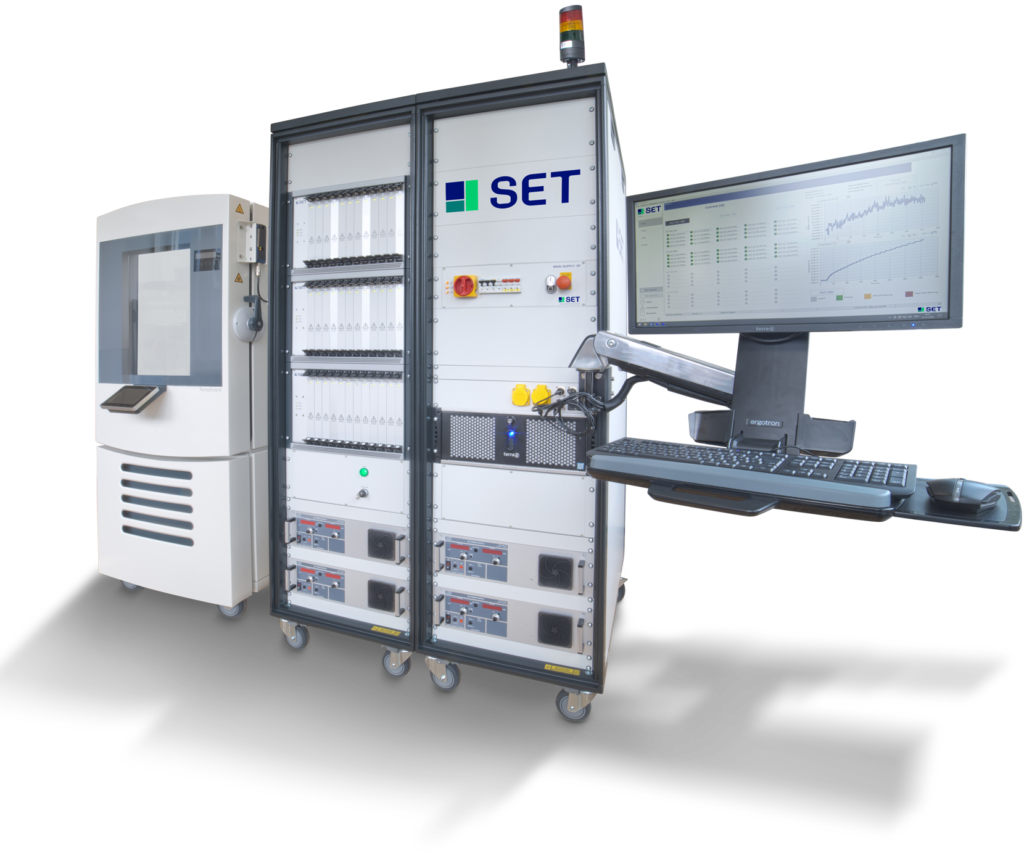

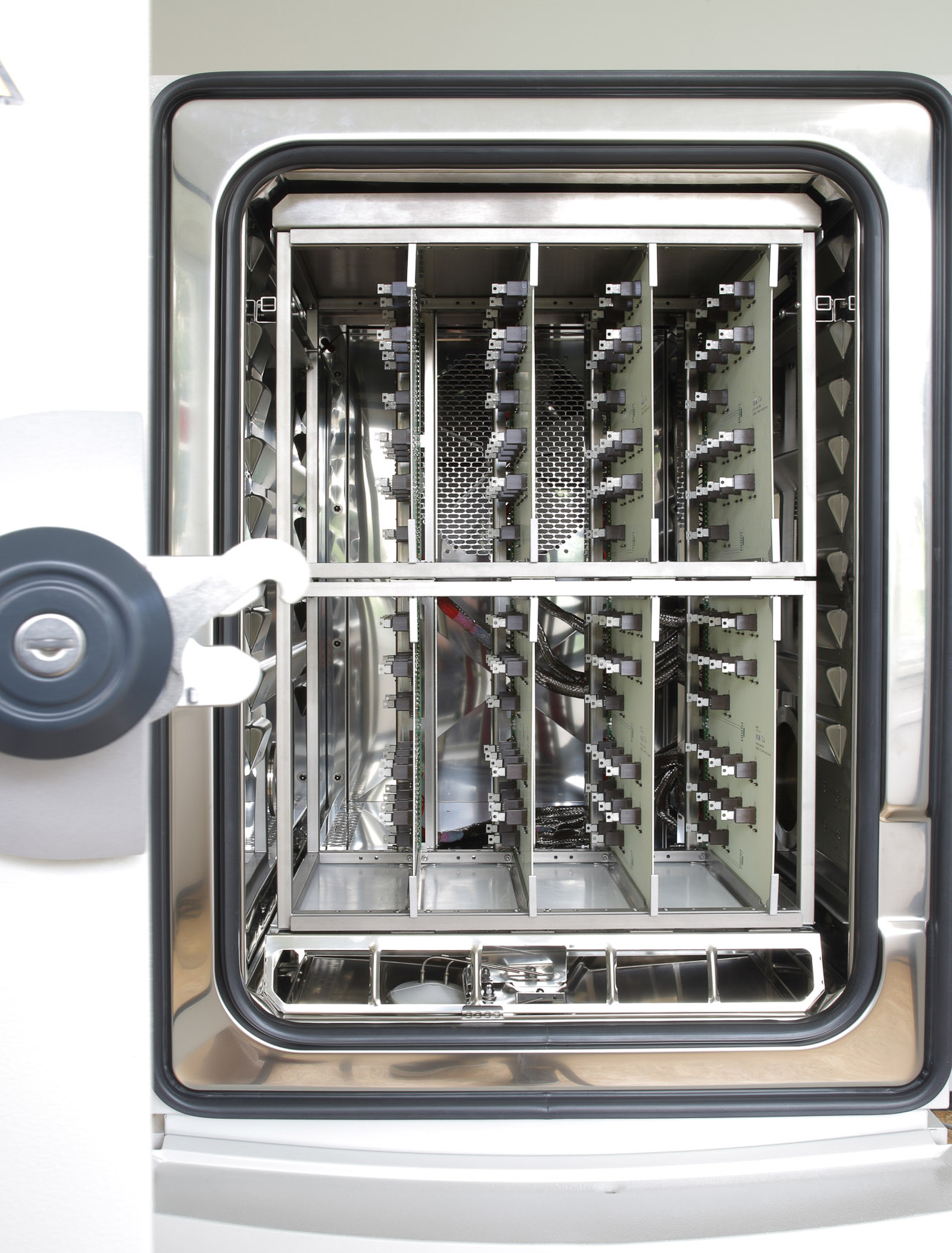

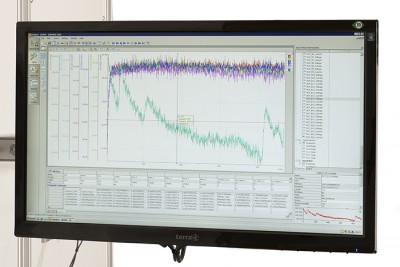

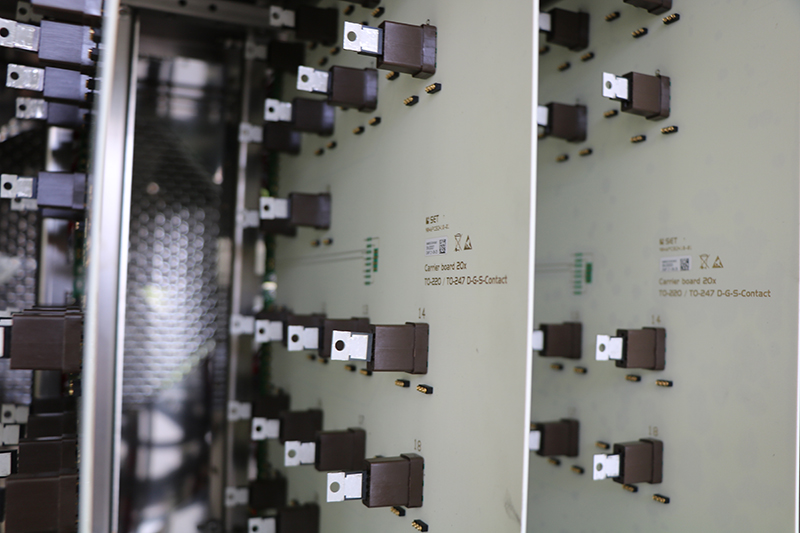

SET offers the right product line for your customer needs – complete turnkey solution consisting of climatic chamber or oven with interior equipment and test item adaptation as well as the test system.

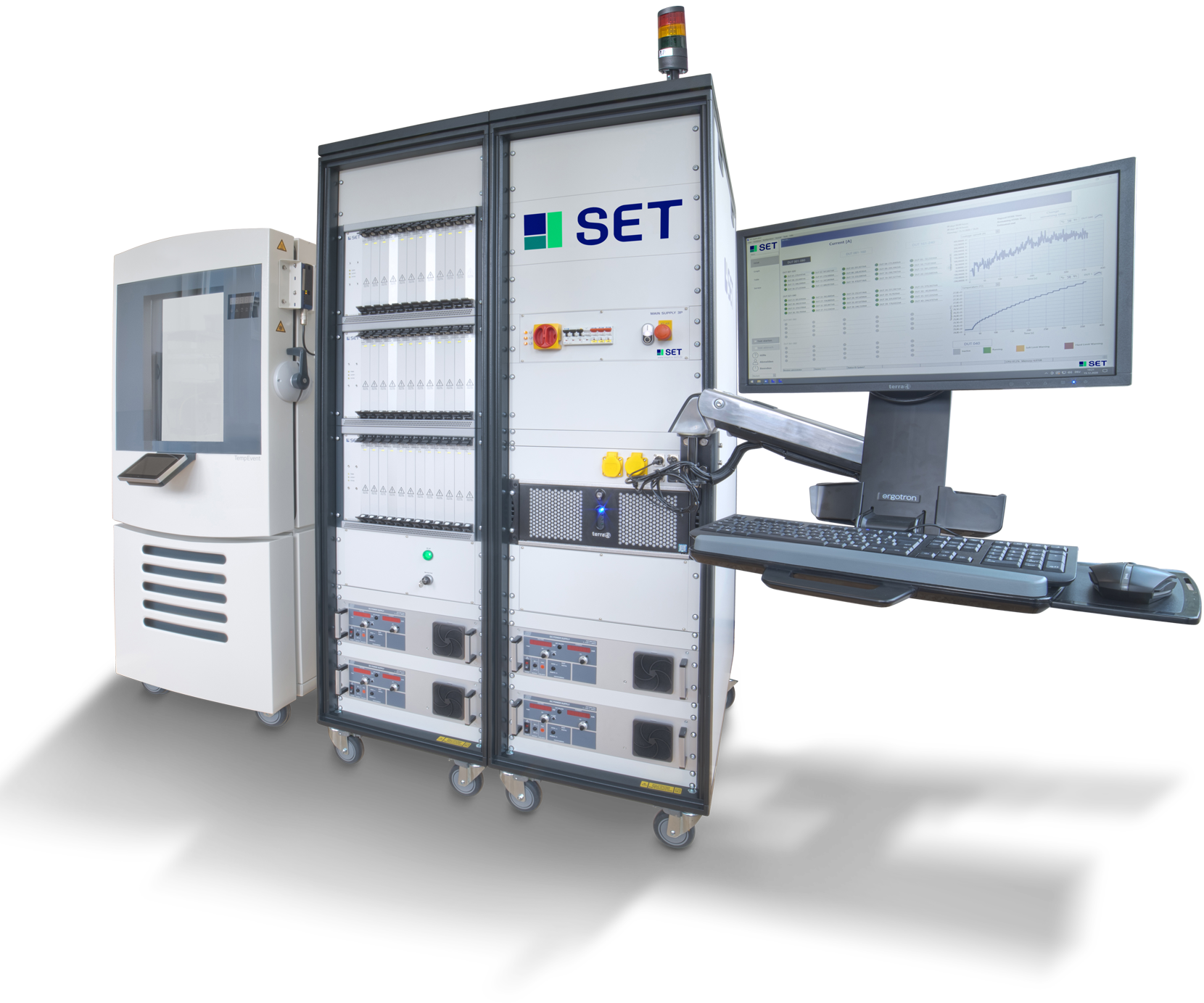

H(3)TRB Test system

Standardized testing solutions to ensure reliability of your power semiconduc­tors


In strategic testing, SET offers two product lines for reliability testing – the High performance & high volume testers. The test systems HTRB (High Temperature Reverse Bias), H(3)TRB (High Humidity High Temperature Reverse Bias) and HTGB (High Temperature Gate Bias) / HTGS (High Temperature Gate Stress) all vary in terms of number of UUT channels and range of technical possibilities. Both stress test product lines are scalable, modular and standardized – enabling a fast time to market. At the same time, SET is flexible enough to make adjustments, where necessary. With modular semiconductor reliability test systems by SET, it is possible to test both discrete semiconductor components as well as power semiconductor modules in a fast and reliable way.

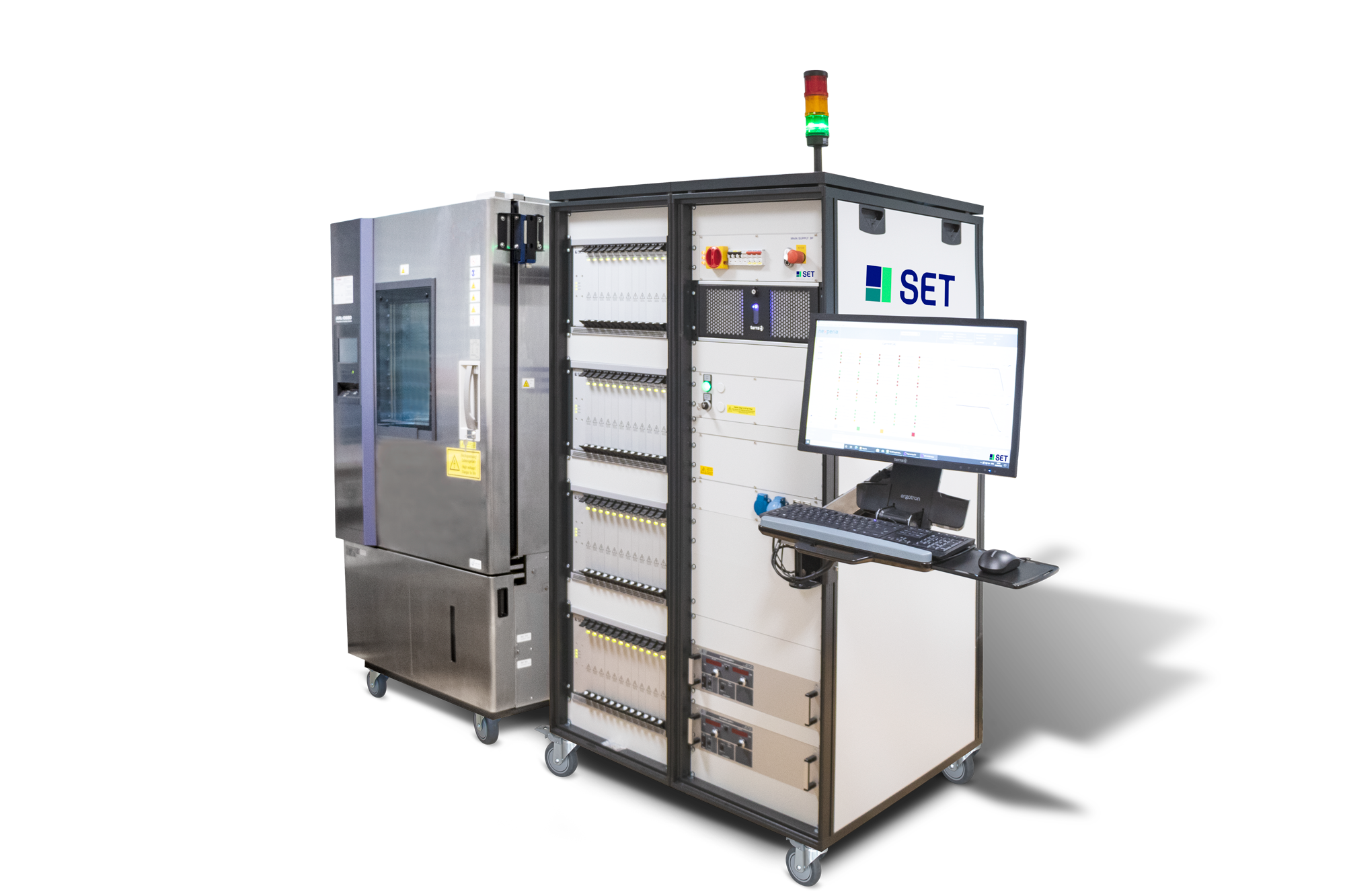

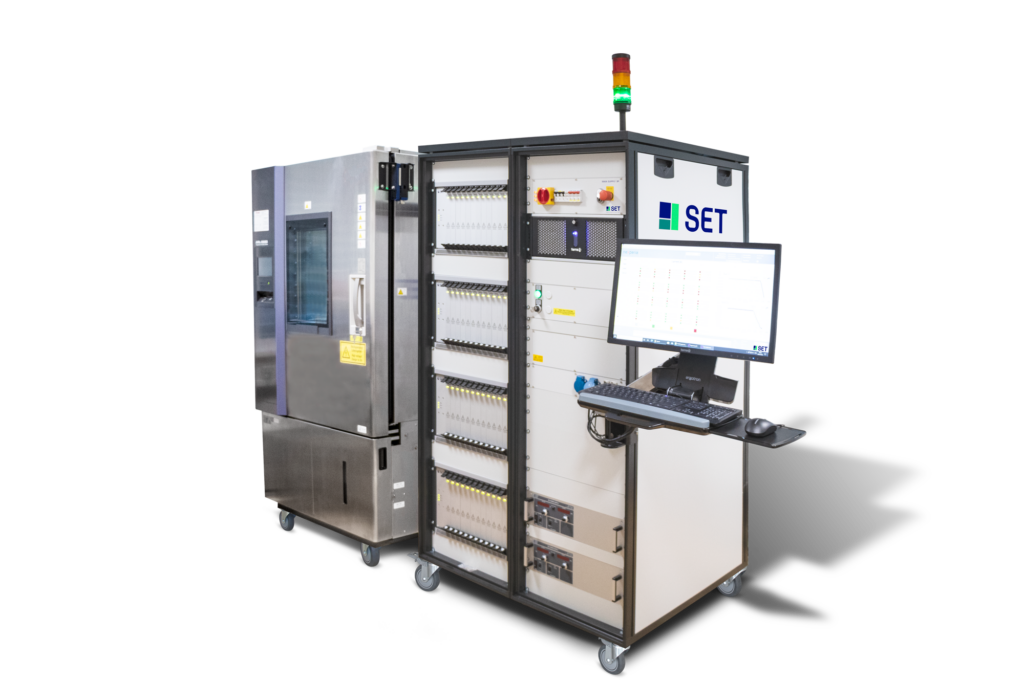

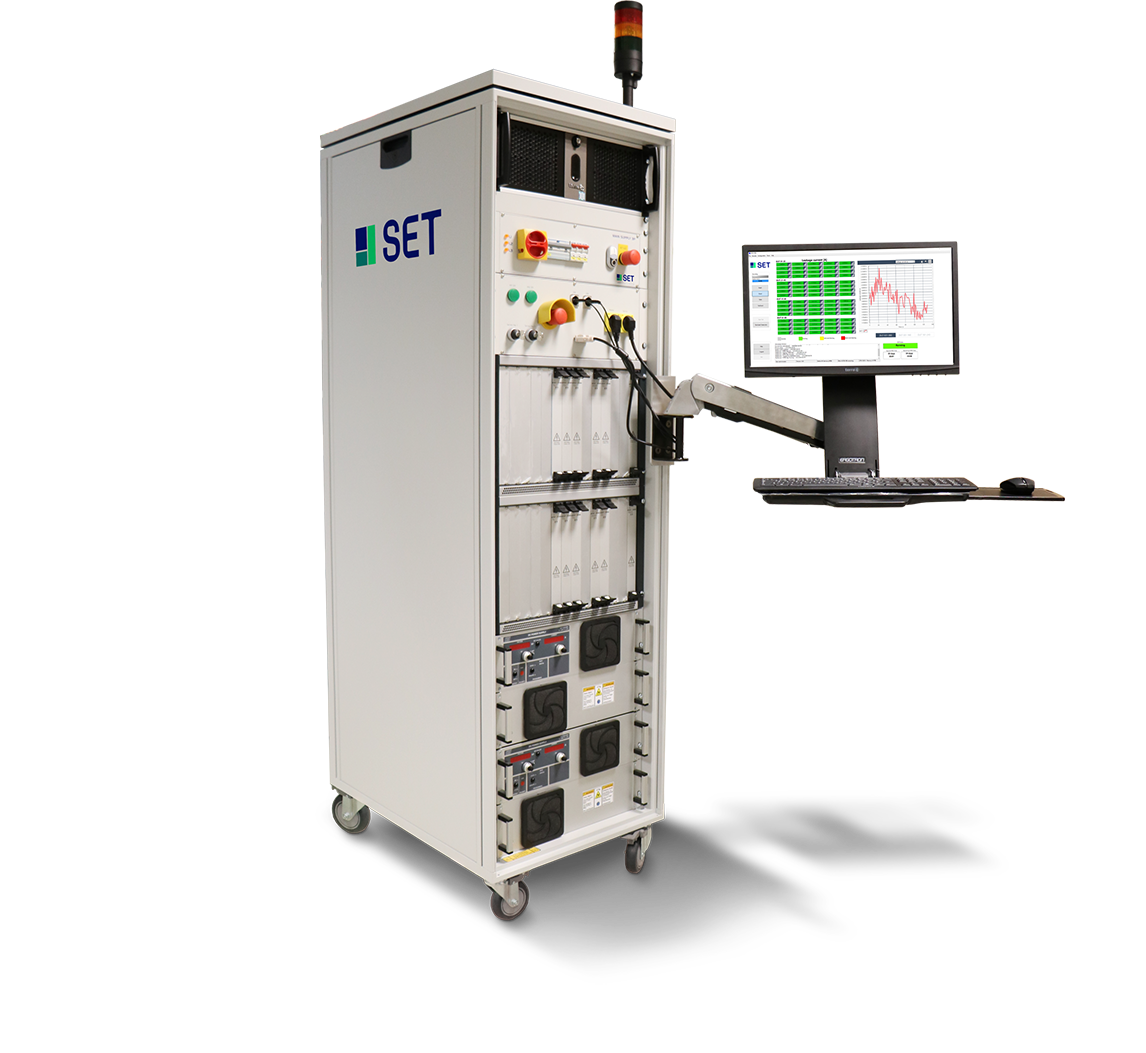

High performance test system

The High performance test systems offer additional functions beyond the pure High Temperature Reverse Bias (HTRB). This brings you important advantages.

Higher utilization of the test device

Each DUT channel can be switched off separately and is actively limited to about 130% of the maximum current. This prevents any influence on adjacent channels and the faulty DUT can be analyzed later. Intermediate measurements can be skipped due to the possibility to fully automatic interrupt the stress tests for in-situ characterization of DUT parameters (Rth, Vgs(th), Vds, Vf, Vbreakdown, etc). After completion of the characterization, the system continues with the stress test completely unattended, which allows a significantly higher utilization of the device in everyday use.

Download Flyer

Available in:


For components and modules with higher power, the system can be supplemented with individual temperature control for each test channel. The system determines the thermal resistance of the test object fully automatically and then carries out a highly accurate temperature control of each individual channel based on Tj. This prevents over-testing of DUTs and allows significantly higher temperatures especially for IGBTs and modules.


  • Focus on scalability in Test functions
  • DUT disconnect on failure
  • Integrated fully automatic ReadOut/Characterizations
    (Rth, Vgs(th), Vds, Vf, Vbreakdown, etc)
  • The number of channels can be increased in steps of 20 channels
  • Upgrading of Functions (for Example Gate Driver) possible by simple changing of cards.
  • Available voltage classes: 1500V, 2000V, 3500V, 4200V
  • Available currents up to 200mA/DUT
  • Switchable current ranges: Test standard and wide-bandgap DUTs
  • Current Clamping to ~130% of current range, latched DUT disable in ~20ms
  • Single DUT Temperation:
    • Controlling the ambient temperature on Tj, not on Tcase or Tambient,
    • Regulation accuracy of Tj up to +/-0,25°C
    • Available as drawer or external Trolley

We offer fast and easy pre-configured test systems that save you valuable time and costs in the development phase of power semiconductors. Select the right configuration for your reliability test.

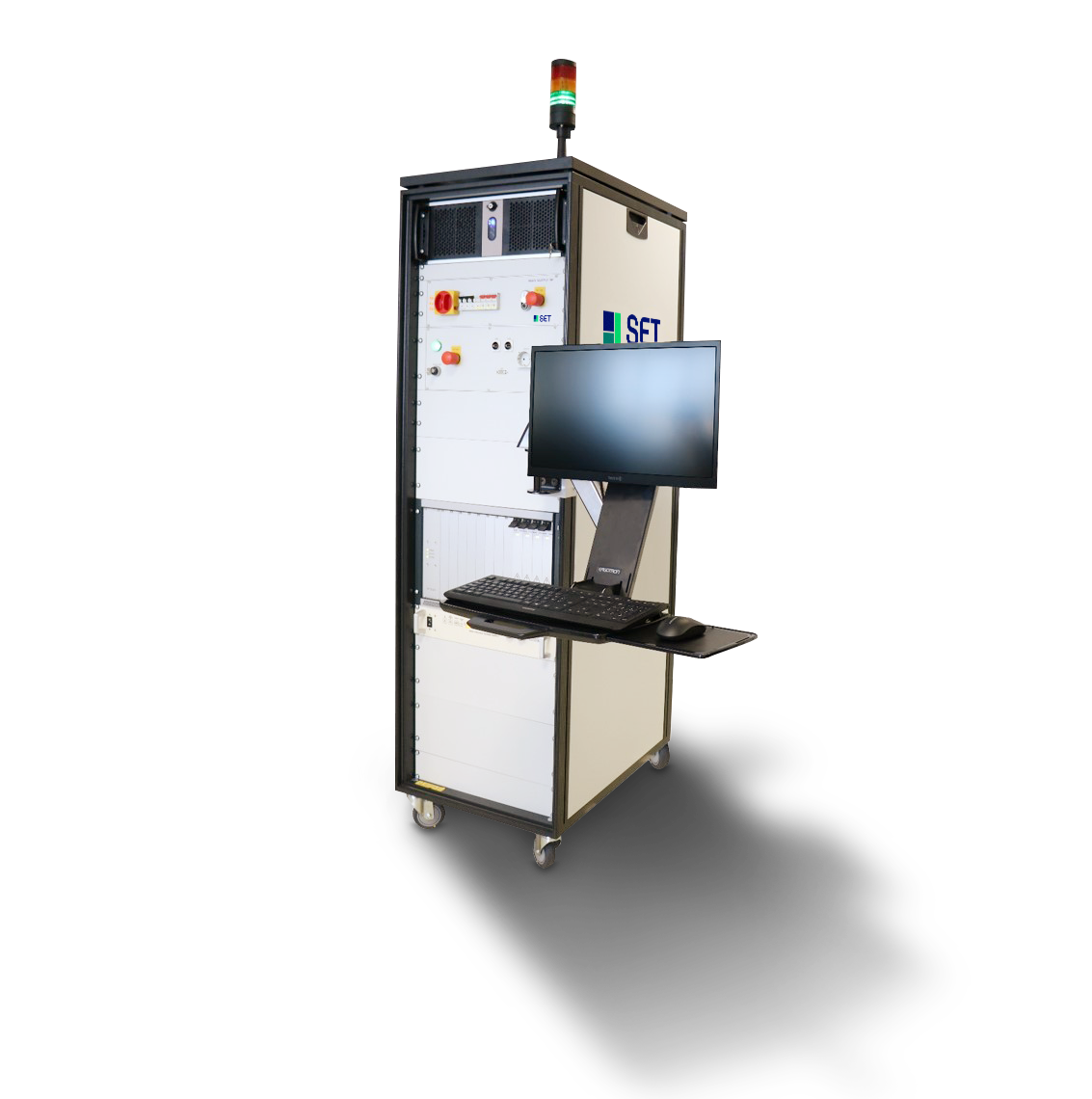

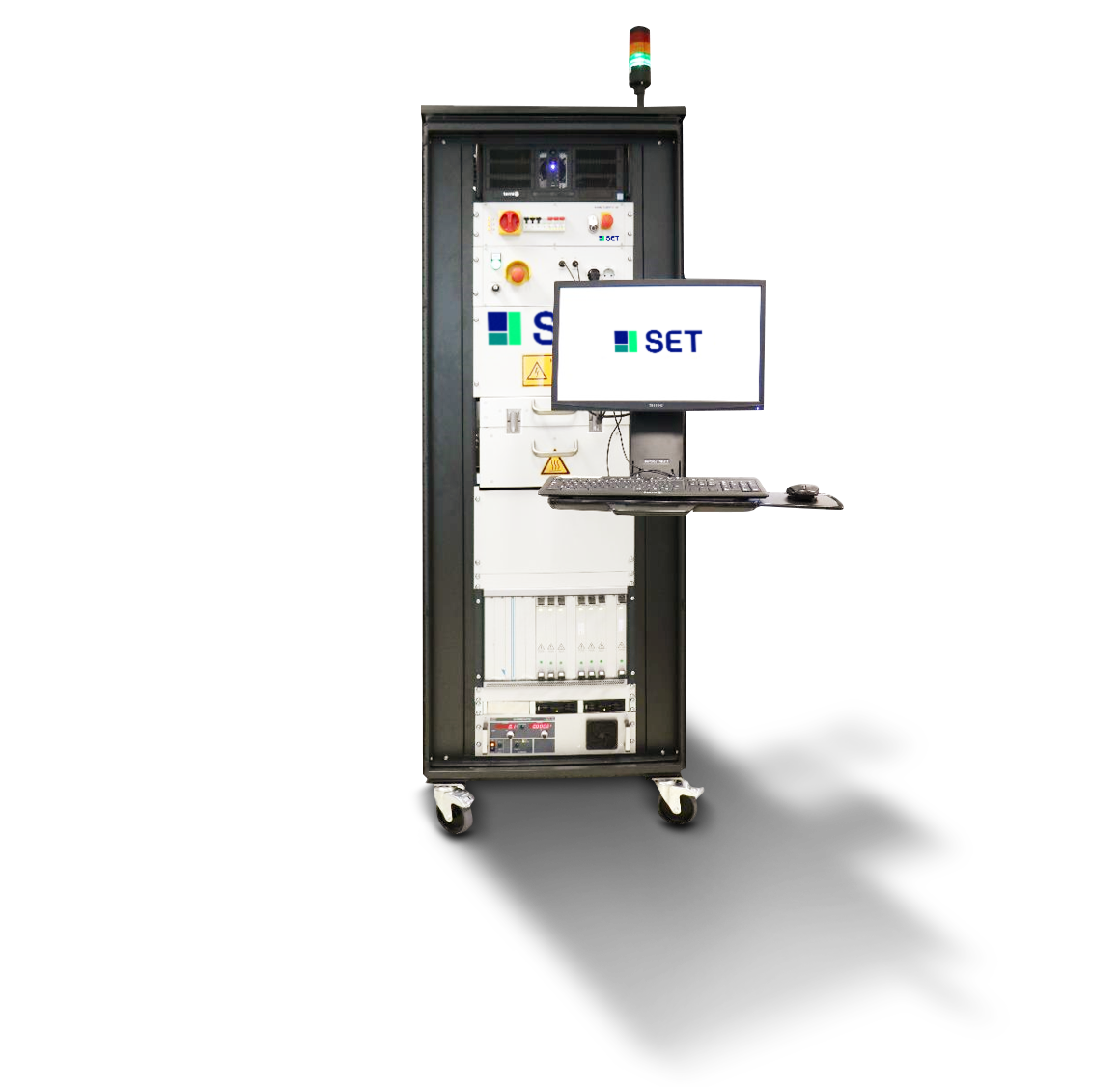

High performance test system 2High performance test system 3
High performance test system 1High performance test system 2High performance test system 3
Volt3500V, two independent tests with 30 DUTs each | HTRB/H3TRB2000V, 40 DUTs, HTRB, Readout functionality2000V, 80 DUTs, HTRB, extendable in groups of 40 up to 240 DUTs
DUTsFull DUT disconnect, Vstress measurement
  • prepared for Gate drive for HTGS
  • prepared for Readout functionality
  • prepared for extending to 40 DUTs each
Single DUT disable, Vstress measurement
  • Gate drive up to +/-30V, +/- 10mA, accuracy 0.1V
  • Automatic interruption of HTRB for fully automatic readouts
  • Characterization of Vgs, Vds, Vbreakdown, Vf
Single DUT disable
  • Adding of Gate drive possible on site
Switchable source current measurement
  • 200mA, 40uA accuracy, 15nA resolution
  • 10mA, 2uA accuracy, 750pA resolution
  • 20mA, 4uA accuracy, 1,5nA resolution
  • 1mA, 200nA accuracy, 75pA resolution
  • 20mA, 4uA accuracy, 1,5nA resolution
  • 1mA, 200nA accuracy, 75pA resolution
Climate chamberExternal Oven or Trolley with Single-DUT temperingDrawer with single DUT tempering on Tj

High volume test system

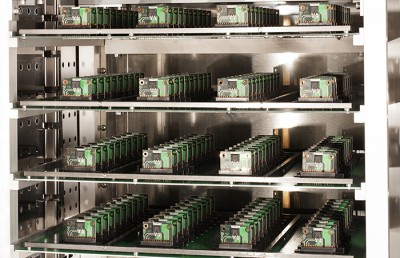

This product line scales excellently in the number of DUTs up to 960 channels per rack. The system handles separate test sequences for the channels in groups of 80 DUTs and separate environmental parameters (humidity/temperature) for the DUTs in groups of 240. Each DUT Channel offers two separated current measurements on Gate and Source. The modular design allows the systems to be upgraded at the customers site in steps of 80 DUT channels.

  • Focus on scalability of DUT Channels
  • Testing of high volumes of DUTs on small space
  • Source and Gate current measurement per DUT
  • Gate stimuli compatible with wide bandgap semiconductors, such as silicon carbide (SiC) and gallium nitride (GaN)

  • Up to 12*80=960 DUTs in a 19“Rack
  • Delivered Racks can be scaled to higher DUTs numbers on site
  • Independent Testing for multiples of 80 DUTs
  • Independent environment parameters for multiples of 240 DUTs
  • Standard Interface to interface all common Ovens and climate chambers
  • HTGB with current measurement on Source and Gate
  • Up to 2000V, 4mA/DUT, Gate +/- 35V

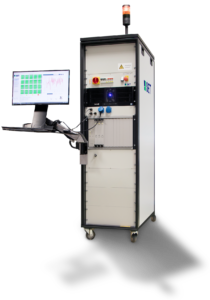

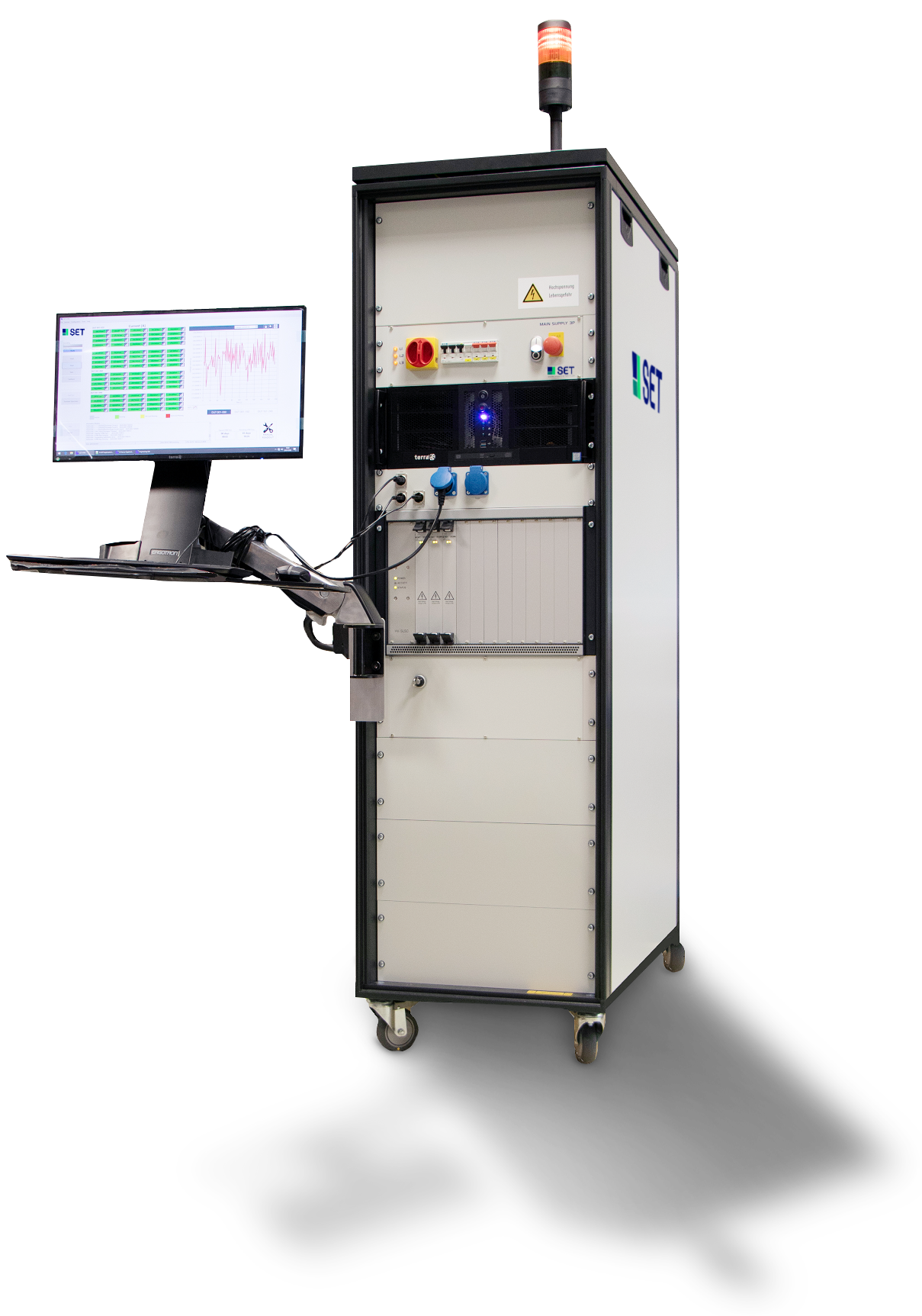

High Volume Beispielkonfiguration

The high volume test system is already preconfigured and thus saves valuable time and costs in the development phase of power semiconductors.

  • 240 DUTs Options for extending to 480, 720 and 960 on side
  • MassInterface connector to external oven
  • Independent testing per 240DUTs (H3TRB/HTRB/HTGS)
  • Up to 2000V, 1mA per DUT
    • Source current measurement: ~1uA accuracy, 0.1Hz per DUT
    • Gate drive: up to +/-25V, 0.1mA, in groups of 40 SW definable
    • Gate current measurement: ~0.5uA accuracy, 0.1Hz per DUT
    • Characteristics changeable with card swapping

Technical Data

High performance test systemHigh volume test system
Devices under test (DUTs) per system (fully monitored)Up to 240 DUTs with stepsize of 20240 – 960 (for a cabinet)
HTRB test voltage300V, 600V, 1000V, 1500V, 2000V, 3500V, 4200V60V, 150V, 300V, 600V, 1000V, 1500V, 2000V
Source current measurement ranges500µA, 1mA, 10mA, 20mA, 100mA, 200mA500µA, 1mA, 4mA
Gate voltage-40V to +40V,
SW configurable
-35V to +35V,
SW configurable
Gate current range10µA, 10mA4µA, 2mA
FeaturesHTGS capability,
Current Range Switching,
DUT current clamping,
DUT disconnect on failure
HTGS capability
Insitu measurementsRth, Vgs(th), Vds, Vf, Vbreakdown
Single DUT temperature controlTj control +/-0.5°C
