SMARTbrick 2700A

DUAL SWITCH INPUT

Testing passive digital outputs

Overview
SMARTbrick 2300A – DUAL 24V DIGITAL INPUT

SMARTbrick 2700A – DUAL SWITCH INPUT

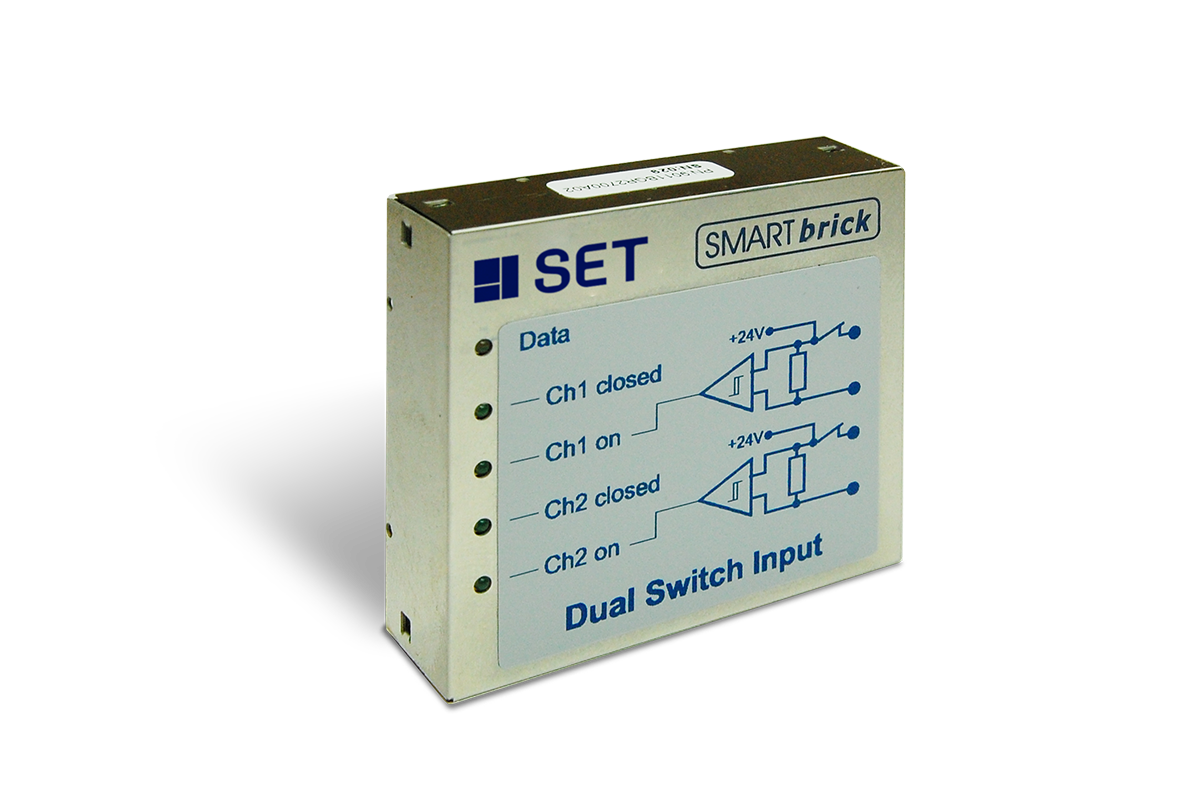

Passive digital outputs can be tested with this module. The module has two input channels for the detection of switching thresholds. The module provides a voltage of 24 V at the input pins via a configurable resistance. A line break can be stimulated individually for each channel for error stimulations. The switching thresholds and the error stimulation are specified in connection with the carrier board via CAN bus.

Request Article

SMARTbrick 2700A

SKU:
85283

Voltage24 V ± 10%
adjustment range of the switching threshold16 V – 22 V
Accuracy of the adjustment range500 mV
Resistance R, preconfigured1300 Ω ±2%, configurable

Modulfunctions

Error stimulation „line breakage“via software
Switching threshold via software adjustable
State displayvia LEDs
