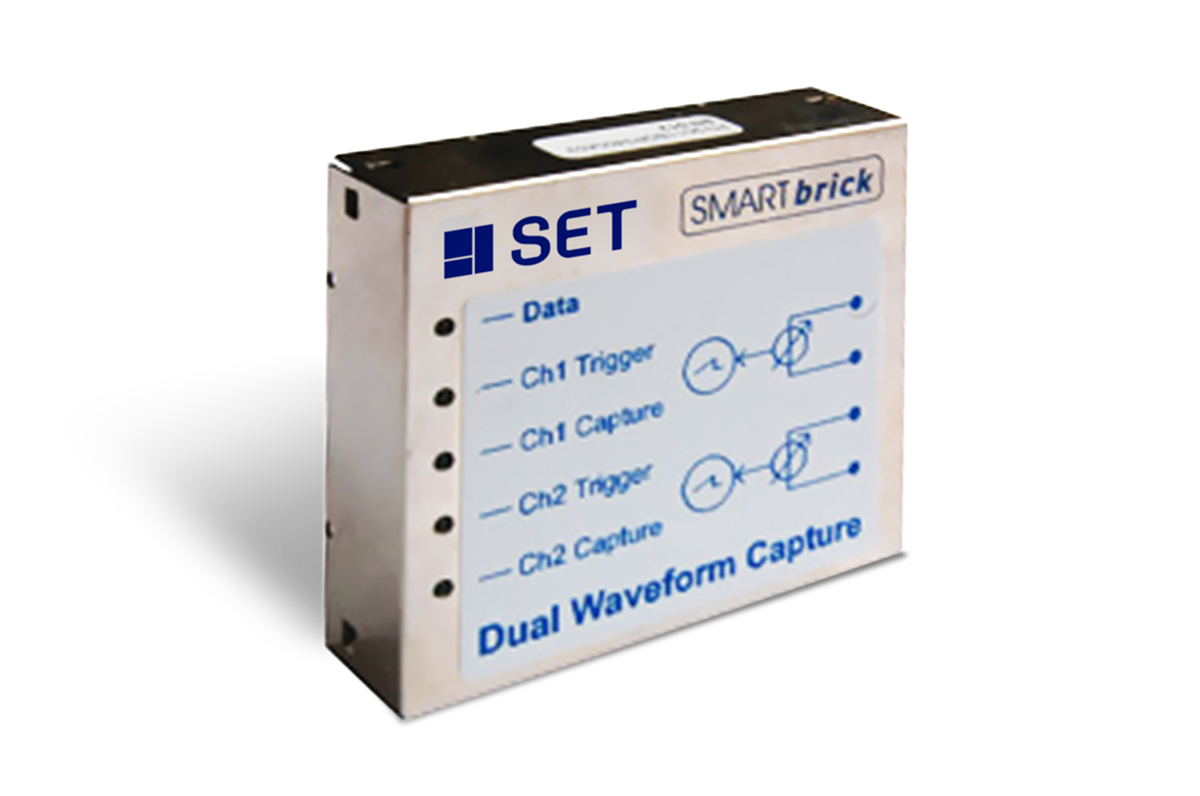

SMARTbrick 3400A – DUAL WAVEFORM CAPTURE

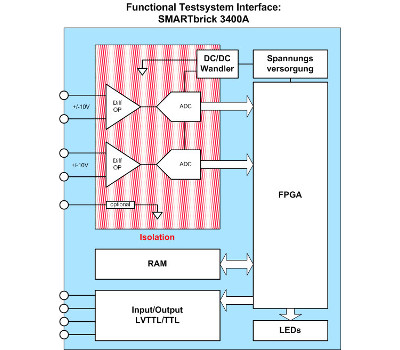

This module has two galvanically isolated power inputs that are measured with 14 bit and 1 Msps.
The module can record 216 samples with a sample rate of 4 kSps to 1 Msps via freely configurable triggers.
The curves can then be read and further processed by the software. The module also offers 4 digital I/Os via which the trigger can also be sent out.
