SMARTbrick 2200A

DUAL SOLID SWITCH/SOURCE

Configure between passive and active types

Overview
SMARTbrick 2200A – DUAL SOLID SWITCH/SOURCE

SMARTbrick 2200A – DUAL SOLID SWITCH/SOURCE

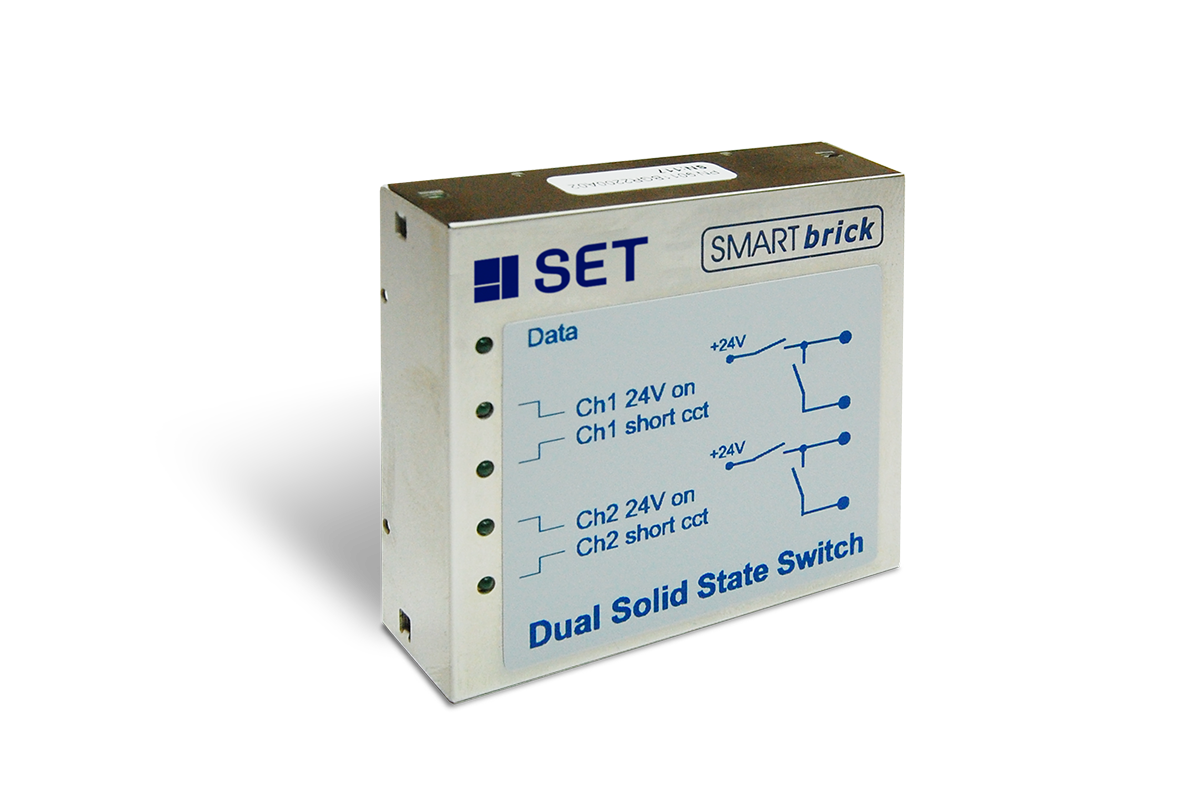

The SMARTbrick 2200A module can be used to configure passive and active types. For error stimulations, a line break / short-circuit on line can be stimulated individually for each of the two channels per module. The configuration and the error stimulation are specified in connection with the carrier board via CAN bus.

Request Article

SMARTbrick 2200A

SKU:
85282

Channels 2

Active state

Output voltage 24 VDC
Max. output current10 mA

Passive state

Max. allowed current through switches200 mA
Resistance with the switch closedmax. 3.5 Ω

Modulfunctions

A to switch lying parallel switchable resistor ( RD ) is used to simulate a wire break. The impedance of the resistor is freely configurable.
Error stimulation „line break“via software
Resistance value24 kΩ
Insulation voltagemax. 50 VDC
Insulation resistance> 1MΩ
Configuration active / passive via software
Display of configurationvia LED’s
