SET-1310

32Ch Isolated Input Card

Isolated digital input interface for SLSC

Overview
32Ch Isolated Input Karte

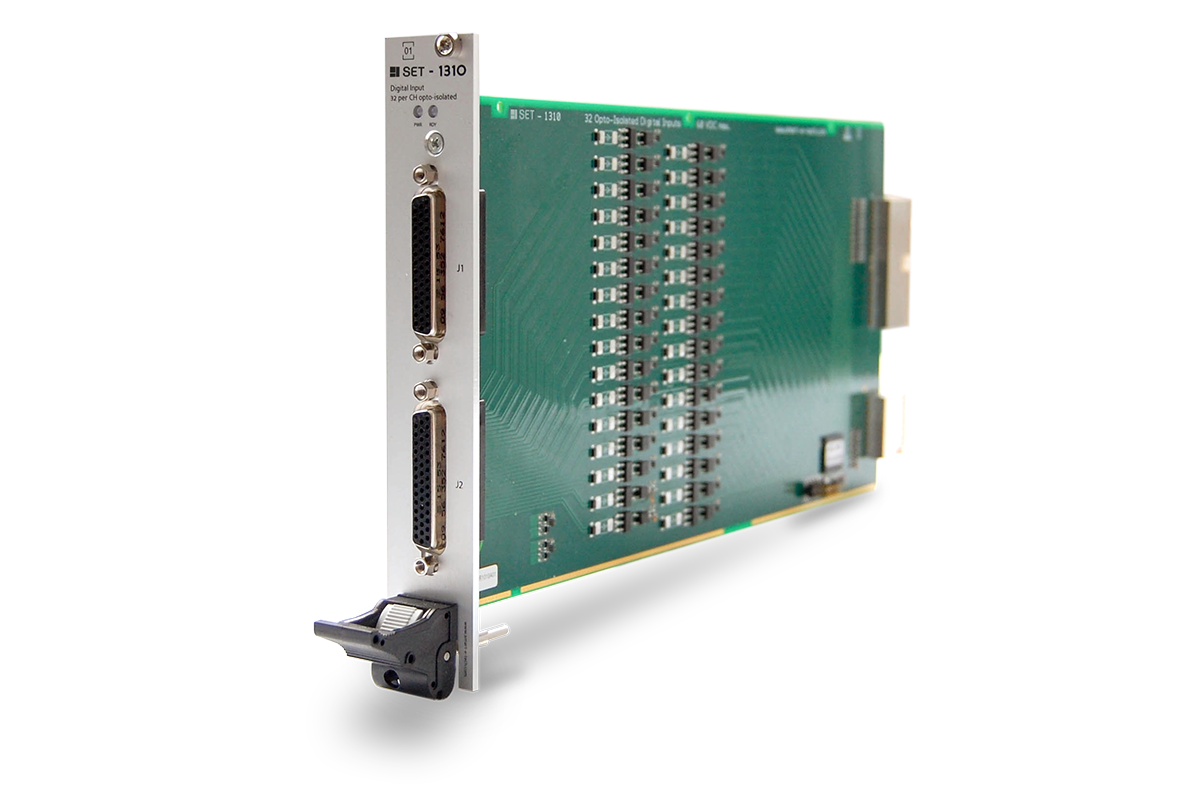

SET 1310 – 32Ch Isolated Input Card

The SET-1310 32Ch Isolated Input Card is an isolated digital input interface for SLSC.

This card provides 32 optically isolated digital inputs. SET-1310 combines high-density IO with high isolation voltages and a wide input voltage range. It allows to break ground loops and protect your system from high-voltage spikes, but also to connect high voltage signals to standard logic level acquisition devices. Furthermore, a channel-to-channel isolation allows to connect signals from different DUTs to a single acquisition system without compromises.

The digital inputs feature a wide supply voltage range and can be used with a variety of signal levels, including 12V and 28V discrete signals.

High-speed, high-sensitivity optoisolators allow reliable input detection with an input current as low as 0.6mA. To protect the optoisolators, each input contains a current limiting circuit which limits the input current to 6mA over the entire input voltage range.

With a maximum voltage between channels and between channel and chassis of 100Vdc, SET-1310 32Ch Isolated Input Card allows you to connect multiple DUTs operating at most usual logic levels to a single data acquisition system.

Request Article

SET-1310

SKU:
93005

  • 32 isolated inputs
  • Isolation voltage:
    • 70 VRMS
    • 100 VDC
  • Wide input voltage range
  • Input current limited to 6mA over entire input voltage range
  • Input reverse protection up to -60V

  • 32 isolated inputs
  • Enables DUT characterization required in parametric testing
  • Isolation of computer from field devices
  • Breaking ground loops
  • High sensitivity current digital input

Absolute Maximum Ratings

ConditionValue
Max. Input VoltageAny Pin 60 Vdc
Min. Input VoltageAny Pin-60 Vdc
Channel to Channel120 Vdc
Channels to Chassis60 Vdc

Technical Data

ConditionValueComment
Max. Input Voltage 60 VOverall temp range
Min. High Level Input Voltage2.3 V
Input CurrentVIN > 5 V4 mA ± 2 mA
Propagation Delay Any Channel, Rising Edge
Any Channel, Falling Edge
Typ: 2.7 μs Max: 3.6 μs
Typ: 8. 4 μs Max: 12.5 μs
Overall temp range
Overall temp range

Environmental

ConditionValue
Operating humidityRelative, non-condensing10% – 90%
Storage humidityRelative, non-condensing5% – 95%
Operating temperatureForced-air cooling from chassis0 °C – 85 °C
Storage temperature -40 °C – 100 °C
Maximum altitude2000 m

SET-1310 Technical Description Download Documenation
